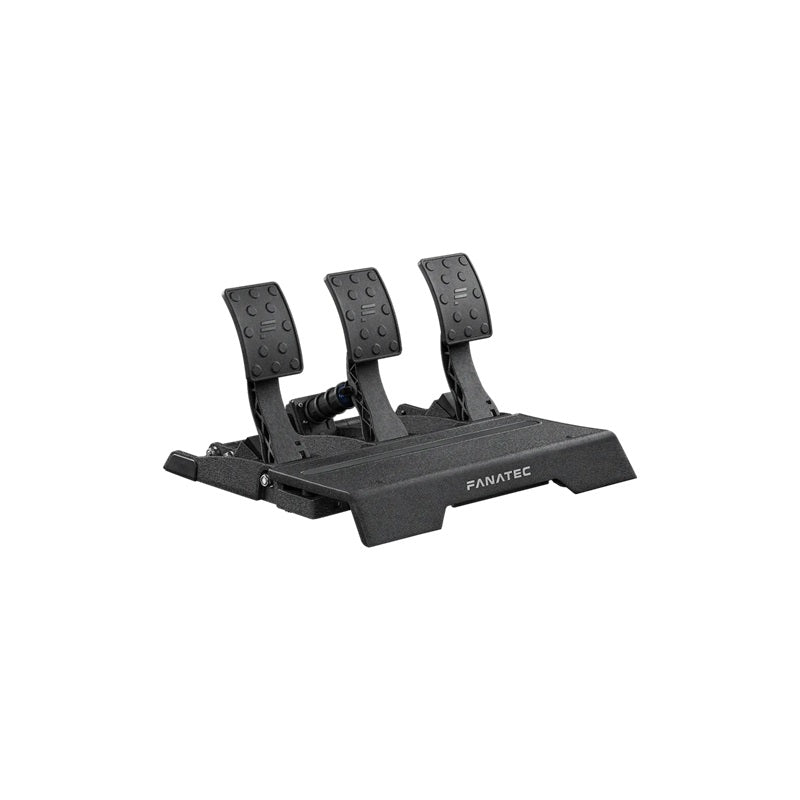

Fanatec CSL Elite V2 Pedals
by Fanatec
$329.99
The popular pedal set returns with an overhauled load cell brake, Hall sensors on throttle and clutch, and many refinements to the design.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
Features
- High-performance three-pedal set (clutch, brake, throttle)
- Contactless Hall sensors on both clutch and throttle for high precision and durability
- All-new load cell brake system
- Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
- Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
- Elastomer stack combined with load cell sensor creates a realistic braking feel
- Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)
- ‘Dual-stage’ preload feeling with metal spring and elastomer
- Alternative metal spring also included for stiffer preload
- Pedal arms, faces, and heel rest made from cast and machined aluminum with durable power-coated finish
- Fully assembled out of the box, plug and play
- Easily configurable as a two-pedal set
- Pedal position can be adjusted sideways along heel rest
- Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
- Detachable rubber pedal covers
- Revised structure on all pedals for greater durability
- Improved access to hard-mounting points
- Dedicated handbrake port
- RJ12 or USB connection
- Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
- Use as a standalone USB input device (PC only)
Compatibility
Peripherals
Compatible with:
- All CSL Elite Wheel Bases
- CSL DD Wheel Base
- Gran Turismo DD Pro Wheel Base
- All ClubSport Wheel Bases
- All Podium Wheel Bases
- ClubSport Handbrake
Platforms
- PC: This product can be used on Windows PC via RJ12 on all compatible Fanatec Wheel Bases, or as a standalone input device via USB.
- PlayStation: This product can be used on PlayStation 4 and PlayStation 5 consoles, if connected to a PlayStation-licensed Fanatec Wheel Base.
- Xbox: This product can be used on Xbox One and Series X|S consoles, if connected to a compatible Fanatec Wheel Base combined with an Xbox-licensed Fanatec Steering Wheel.
- CSL Elite Pedals V2 (three-pedal set, fully assembled)
- Alternative elastomers and metal spring for brake tuning
- 2x Brake pedal assembly helper
- 1x Wheel Base connection cable RJ12/RJ12 (~3 m)
- 1x USB cable (~3 m)
- 2x Wrench (13 mm)
- 1x Allen key (6 mm)
- 1x Allen key (4 mm)
- 1x Quick Guide
- 1x Sticker Set
