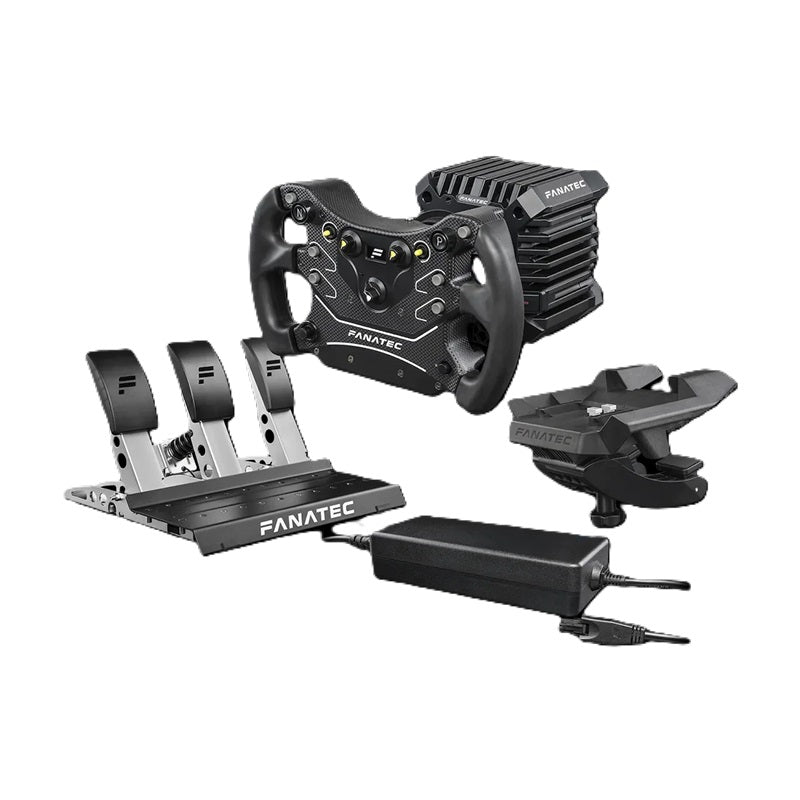

Fanatec CSL DD GT3 Ready2Race Bundle
by Fanatec
Save $89.95
Original Price
$1,089.94
Current Price
$999.99
The authentic GT3 experience starts here. The CSL Steering Wheel GT3 offers premium features such as an OLED display, rocker switches, and encoders, setting the standard for affordability without compromise.
Use the dual-clutch paddle system as the ultimate weapon to nail every race start. The advanced bite-point mode allows you to determine the optimal bite-point before the start of the race and initiate the perfect launch every time.
The CSL DD QR2 (8 Nm) package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.
Brake with consistency and confidence with the CSL Pedals Load Cell Kit. You’ll be smashing your personal best laps in no time.
Features

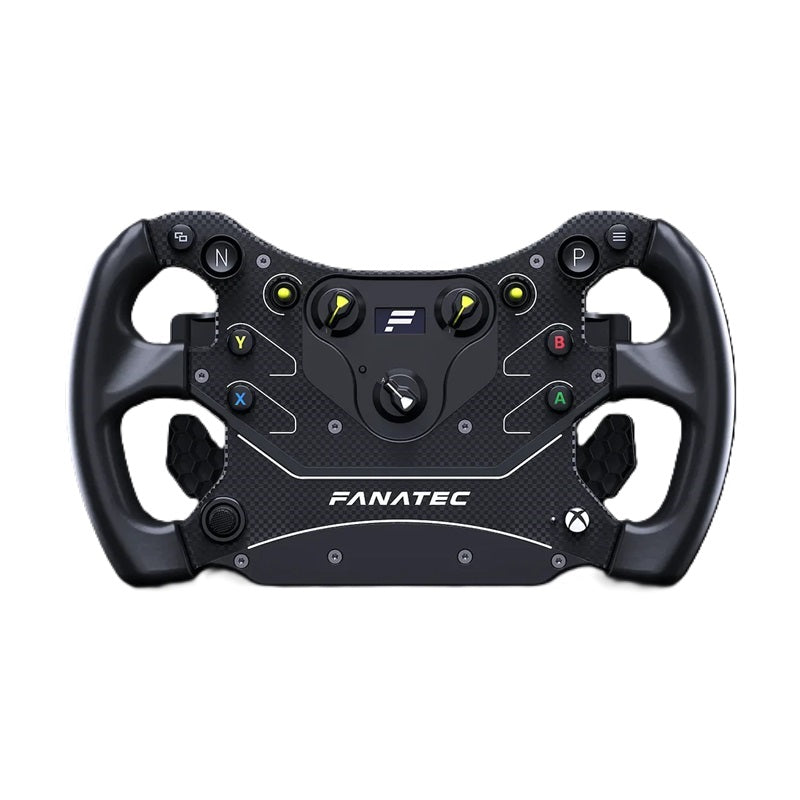

CSL Steering Wheel GT3
- Full-size GT3-style wheel (300 mm diameter)
- Designed for the Xbox Series X|S and Xbox One® consoles
- Custom designed magnetic shifters for superior tactile response
- Rocker-type paddle allows up and down-shifts with one hand (possible on both sides)
- Made from anodized aluminum, precision cut with diamond texture grips
- Two analog paddles reinforced with honeycomb structure, supporting four switchable modes:
- Clutch bite-point mode (standard/advanced)
- Clutch/handbrake mode
- Brake/throttle mode (allows driving without pedals connected)
- Mappable axis mode
- Clutch bite-point system can be used in any game with analog clutch input
- 1”, 128 x 64 resolution OLED display (white)
- Two 2-way toggle switches
- Multi-Position Switches: two 12-position switches, rotary encoder mode
- 7-way FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder
- Two high-bezel snap-dome buttons with laser-engraved P and N lettering. Realistic actuation force of ~2500 gf.
- Seven standard buttons with removable button caps
- Xbox and racing-style button caps included
- Six face buttons compatible with Button Caps and Sticker Set (sold separately)
- Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
- Overmolded rubber grips with 50 Shore A hardness
- Xbox® mode LED indicator
- Weight: 1290 g (including quick release)
- QR2 Lite Wheel-Side (preinstalled)
- Carbon fiber-reinforced composite
- Spring-loaded locking pin mechanism and tapered shape naturally ensures a tight fit
- Can be attached to Base without touching the sleeve mechanism
- Allows maximum torque on ClubSport DD and Podium DD bases
CSL DD QR2
- Direct-Drive system delivers instant, detailed force feedback
- Boost Kit 180 included
- Linear, consistent performance (8 Nm peak torque)
- Patented, exclusive FluxBarrier technology optimizes motor efficiency and smoothness
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fiber-enhanced composite
- Fanless: wheel base housing is made from aluminum (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fiber-reinforced polyamide construction
- Exchangeable
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness
- Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

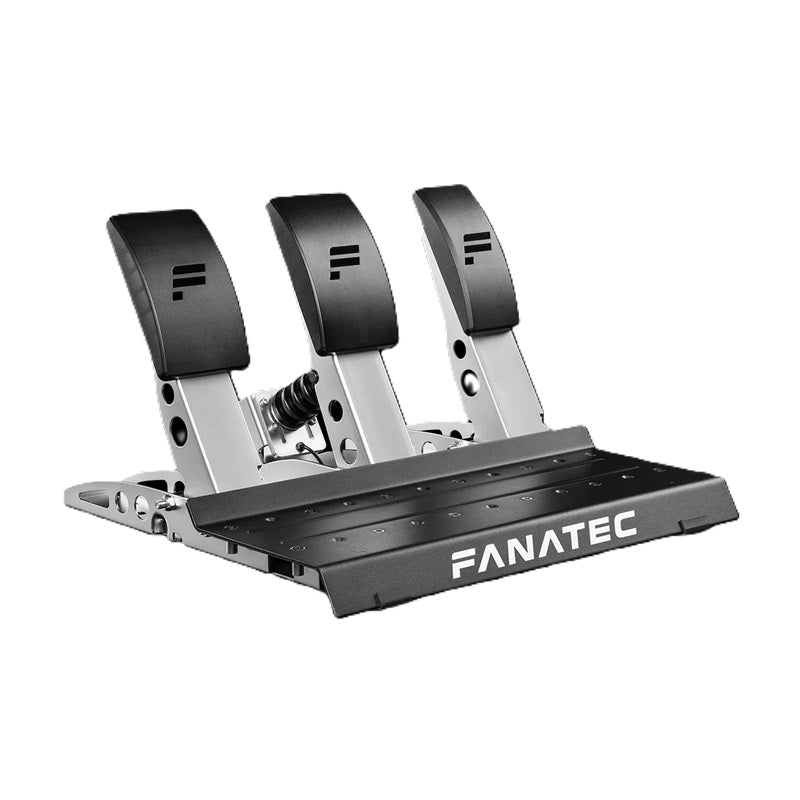

CSL Pedals LC
- Three-pedal set (clutch, brake, throttle)
- All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
- Optional anodized aluminum pedal plates
- Contactless Hall sensors (12-bit) on both clutch and throttle for high precision and durability
- Clutch pedal spring is stiffer than throttle pedal spring
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
- Custom-designed load cell sensor
- 12-bit precision
- Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
- Heavy-duty elastomer stack with 65 Shore hardness
- Upgraded electronics
- USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)
- Manual calibration of Min and Max values possible, settings saved to the internal memory
CSL DD Table Clamp
- Designed specifically for the CSL DD and Gran Turismo DD Pro
- Easily mount your wheel base to a desk or table
- Supports 5 to 60 mm table thickness
- Wheel base angled to 15 degrees (non-adjustable)
- Made from glass fiber-reinforced plastic
- Stargrip attachment included to assist tightening
Compatibility
Peripherals
The CSL DD QR2 Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (including ClubSport Static Shifter Paddles)
- ClubSport Handbrake (all versions)
- All Fanatec Cockpits
- CSL DD Table Clamp
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Boost Kit 180
- Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms
- PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
- Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
- PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
CSL Steering Wheel GT3
- CSL Steering Wheel GT3
- QR2 Lite Wheel-Side preinstalled
- CSL DD Wheel Base
- QR2 Lite Base-Side (Type-C) preinstalled
- Boost Kit 180 power supply (regional)
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
- CSL Pedals
- Throttle pedal unit
- Brake pedal unit with PU foam damper
- Heel rest
- 1x Wheel Base connection cable RJ12/RJ12 (~2m)
- 1x Torx key
- M4x12 mounting bolts (only to mount pedals to heel rest)
- Hard-mounting spacers
- Replacement rubber feet (floor protection)
- 1x Quick Guide
- CSL Pedals Load Cell Kit
- Load Cell Brake Pedal (pre-assembled)
- 1x USB cable
- 1x RJ12 to RJ12 cable
- 1x Torx key
- M4x12 Mounting bolts (only to mount pedals to heel rest)
- 1x Quick Guide
- 1x Table Clamp Baseplate
- 1x Table Clamp Arm
- 1x Table Clamp Bolt
- 1x Table Clamp T-nut
- 1x Star Grip Attachment
