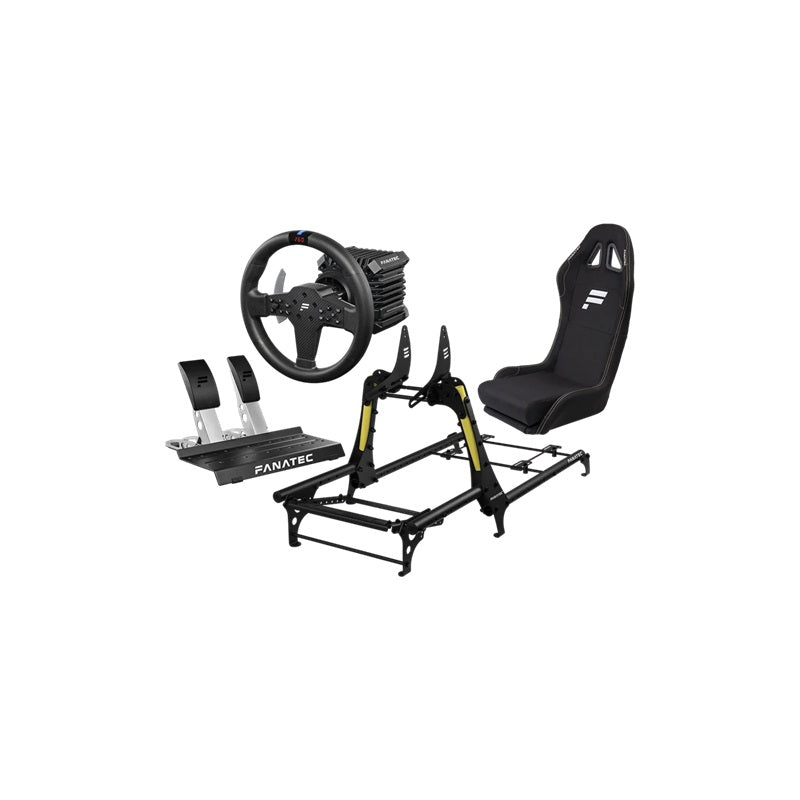

Fanatec CSL Cockpit + CSL DD Ready2Race Racing Bundle

With a remarkably compact footprint, the CSL Cockpit punches well above its weight. Every part of the aluminum and steel construction is optimized for stiffness and strength. Combined with the CSL Steering Wheel P1 V2, an ideal starter wheel for the CSL DD, and the CSL Cockpit Seat this is a full cockpit bundle at the lowest price that doesn’t compromise on performance.

Angled uprights help to distribute the load on the chassis more effectively than a rectangular profile construction. The CSL Cockpit can handle all Fanatec Direct Drive systems, even the 25 Nm Podium Wheel Base DD2, and the pedal plate is designed for the high forces applied on load cell brakes.

Features

CSL Cockpit

• Super strong and lightweight trapeze chassis
  • Aluminum tubing
  • Steel brackets
  • Black and yellow powder coating
• Designed specifically for Fanatec Direct Drive Wheel Bases with optimal side mounting
• Strong pedal plate for consistent control on load cell brakes
• CSL Cockpit Seat designed to match the style of the CSL Cockpit
• Supports most standard racing seats (including the SPARCO Pro 2000 QRT)
• Pedals angle and distance adjustment
• Innovative Wheel Base mounting bracket design
  • Three height options
  • Stepless adjustable angle (0 to 30°)
  • Stepless adjustable distance to seat (80 mm range)
  • Can be inverted to achieve an ideal karting position
• Optional monitor holder (sold separately)
• Optional shifter holder (sold separately)
• Hollow tubing allows for tidy cable management
  • Included tube caps with cable holes.
• Two types of protective foot pads (felt and rubber) to suit carpet or hard flooring
• Compact packaging for ease of shipping.

CSL Steering Wheel P1 V2:

• Realistic size, suitable for many driving styles (300 mm)
• Rubberized wheel rim with improved ergonomics
• Integrated RevStripe™, which is a combined center stripe and an engine RPM indicator, using a multi-color LED
• Three-digit LED display smoothly integrated into the wheel rim below the RevStripe™ allows telemetry data such as speed or gears to be displayed in compatible games or third-party software
• Metal shifter paddles, snap-dome-activated “click” feeling
• 4-way direction pad with push button
• Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base/racing wheel for details)
• QR2 Lite Wheel-Side preinstalled

CSL DD QR2:

• Direct-Drive system delivers instant, detailed force feedback
• Linear, consistent performance (5 Nm peak torque)
• Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
• Patented, exclusive FluxBarrier technology optimizes motor efficiency and smoothness
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium Series
• Steering axis made from carbon fiber-enhanced composite
• Fanless: wheel base housing is made from aluminum (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
• QR2 quick release system
  • Motorsport-derived quick release
  • Tapered shape naturally ensures a tight fit
  • Carbon fiber-reinforced polyamide construction
  • Exchangeable
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Optional table clamp (sold separately), supports 5 to 60 mm table thickness
• Ports:
  • Power supply
  • USB-C to PC / console
  • Fanatec DataPort-C
  • Shifter 1
  • Shifter 2 (Sequential only)
  • Pedal
  • Handbrake
• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

CSL Pedals:

• Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
• Optional anodized aluminum pedal plates (CSL Pedals Tuning Kit, sold separately)
• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
  • CSL Pedals Clutch Kit provides a third pedal for the lowest price
  • CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest

Compatibility
