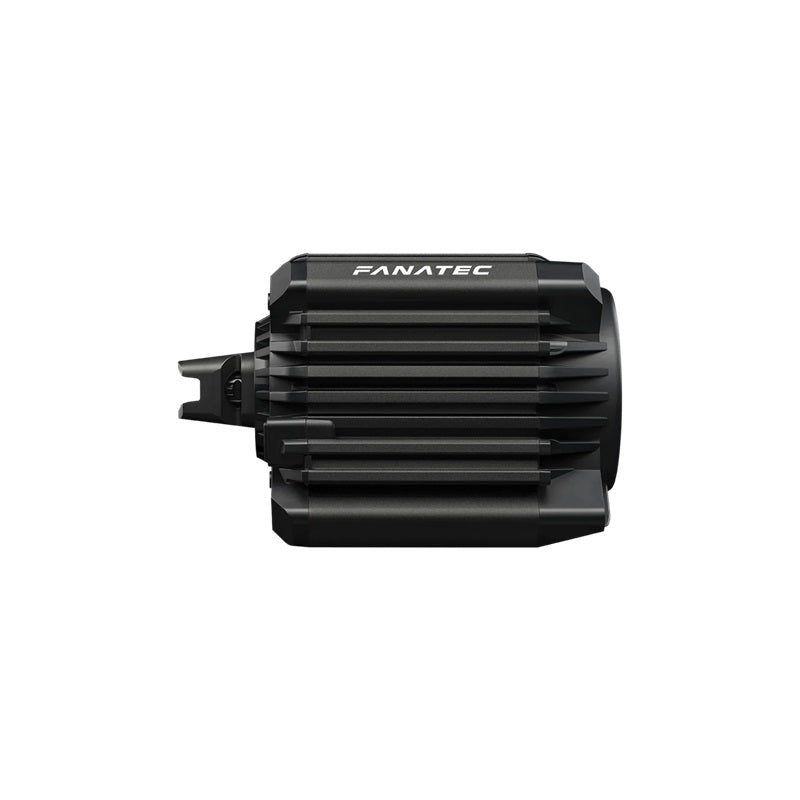

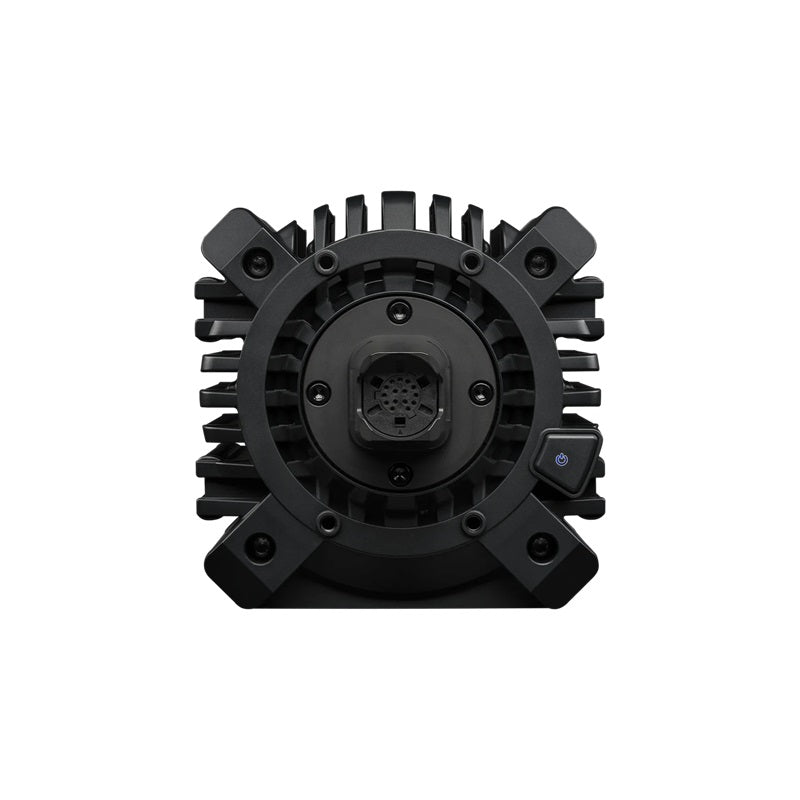

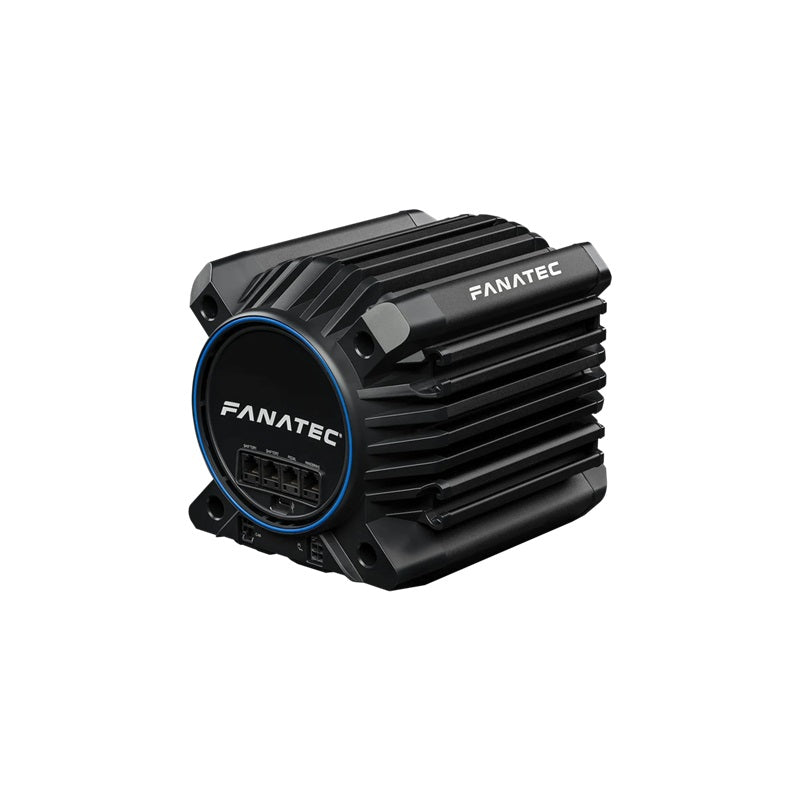

Fanatec Clubsport DD+ Wheel Base
by Fanatec
$1,179.99
The all-new ClubSport DD+ delivers 15 Nm of consistent torque performance with incredible responsiveness and dynamics. Your favourite racing sim suddenly became much more realistic.
Not all Direct Drive systems are created equally. Decades of experience with force feedback technology have contributed to the many structural and electronic control optimizations in the ClubSport DD+ to deliver industry-leading performance in its class.
Features
- Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
- Direct Drive servo motor
- Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
- 15 Nm consistent torque
- Optimized skew angle on rotor magnets reduces cogging torque
- Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
- FullForce technology
- New force feedback protocol developed for Fanatec Direct Drive
- Super low-latency detail effects through fine motor frequency control
- Passively cooled Wheel Base
- Most thermally stable Wheel Base in its class
- Consistent performance under the most extreme conditions
- QR2
- Wheel Base optimized for QR2 from the ground-up
- Electronics module integrated with shaft
- Diecast aluminum with CNC-machined finish
- Motorsport-derived quick release system
- Works out-of-the-box on Windows PC and PlayStation®5 and PlayStation®4 consoles
- Full Fanatec SDK support ensures compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
- Compatible with entire Fanatec ecosystem (see Compatibility section for details)
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Ports:
- Power supply
- USB-C to PC / console
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- CAN (for future Fanatec peripherals)
- Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
Compatibility
Peripherals
The ClubSport DD+ Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (all versions)
- ClubSport Handbrake
- All Fanatec Cockpits
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Note: ClubSport Static Shifter Paddles are not supported.
Platforms
- This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
- This product is compatible with PC on all major racing games.
- Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.
- ClubSport DD+ Wheel Base
- QR2 Base-Side (Type-F) preinstalled
- Power Supply (regional)
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
